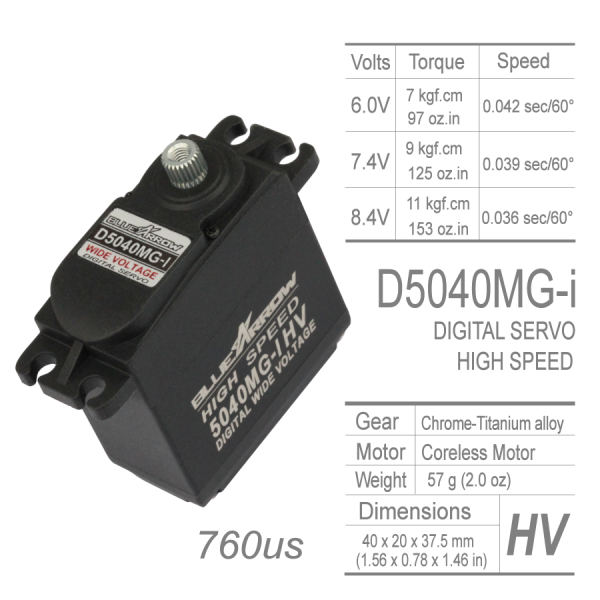

DIGITAL SERVO
 Click to enlarge
|
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 760 μs /560 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 60° , Right Rotation: 60° |
| Voltage: | 4.5V to 8.4V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 300μs |
| Direction: | Clockwise/Pulse Traveling 450μs-1050μs |
| Pulse Width Scope: | 450-1050μs |
| Neutral pulse: | 750μs (Super Narrow Pulse) |
| Speed:(No-load ): | 0.05sec/ 60° @ 6.0V |
| 0.04sec/ 60° @ 7.4V | |
| Torque:(Stall Full load): | 5.00 kg . cm @ 6.0V |
| 6.00 kg . cm @ 7.4V | |
| Idle Current: | 0.050 A/ 6.0V 0.060 A/ 7.4V |
| Running Current: | 0.300 A/ 6.0V 0.400 A/ 7.4V |
| Stall Current: | 2.5 A/ 6.0V 2.9 A/ 7.4V |
| Motor Type: | |
| Bearings: | 2 Ball Bearing |
| Bearing Type: | MR106(6mm x 10mm x 2.5mm) |
| MR106(6mm x 10mm x 2.5mm) | |
| Gear Material: | Chrome-Titanium-Al alloy(7075) |
| Servo case: | Upper/lower PA66 Mid aluminum |
| Plug: | |
| Connector Wire Length: | 300.00 mm |
| Connector Wire SPEC: | OD0.8mm/16 x 0.08mm 3p x 160mm (JR) |
| Weight: | 57.00 g |
| Dimensions (L x W x H): | 20.00*40.00*37.50 mm |
