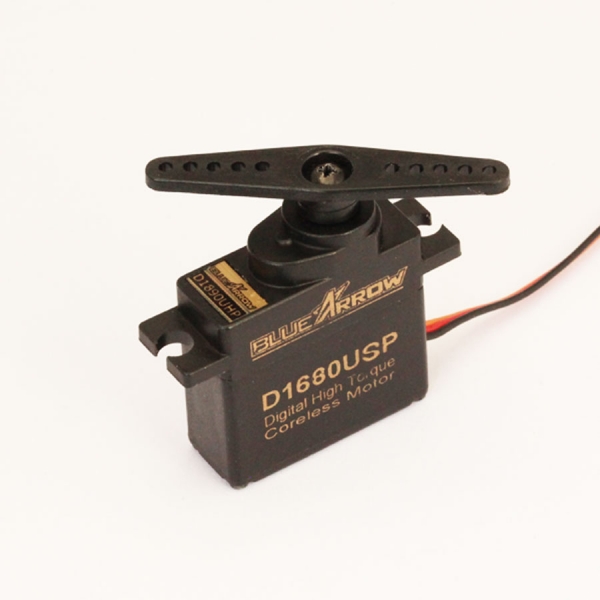

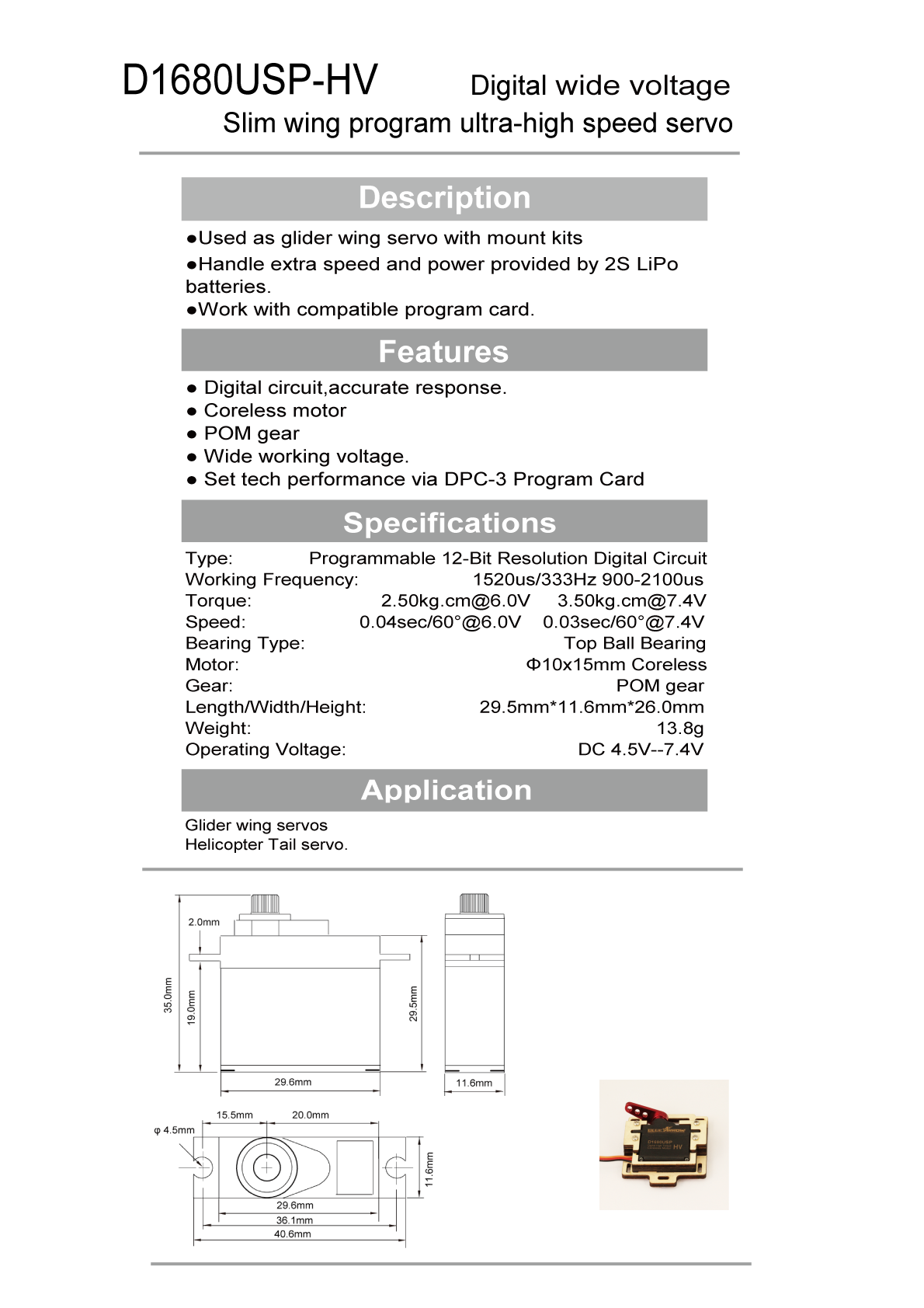

DIGITAL SERVO
 Click to enlarge
|
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 60° , Right Rotation: 60° |
| Voltage: | 4.5V to 7.4V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 600μs |
| Direction: | Clockwise/Pulse Traveling 900μs-2100μs |
| Pulse Width Scope: | 900-2100μs |
| Neutral pulse: | 1500μs |

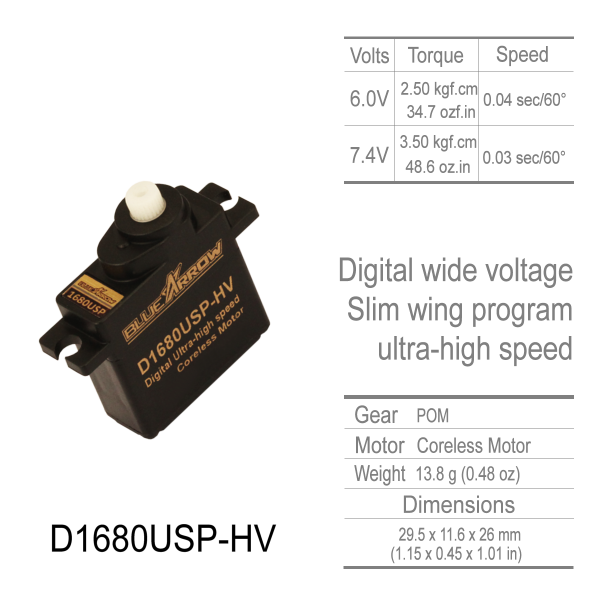

| Speed:(No-load ): | 0.04sec/ 60° @ 6.0V |
| 0.03sec/ 60° @ 7.4V | |
| Torque:(Stall Full load): | 2.50 kg . cm @ 6.0V |
| 3.50 kg . cm @ 7.4V | |
| Idle Current: | 0.040 A/ 6.0V 0.040 A/ 7.4V |
| Running Current: | 0.280 A/ 6.0V 0.350 A/ 7.4V |
| Stall Current: | 1.2 A/ 6.0V 1.5 A/ 7.4V |
| Dead Band Width: | 2μs |
| Motor Type: | |
| Bearings: | TOP Ball Bearing |
| Bearing Type: | MR85 (5mm x8mm x2mm) |

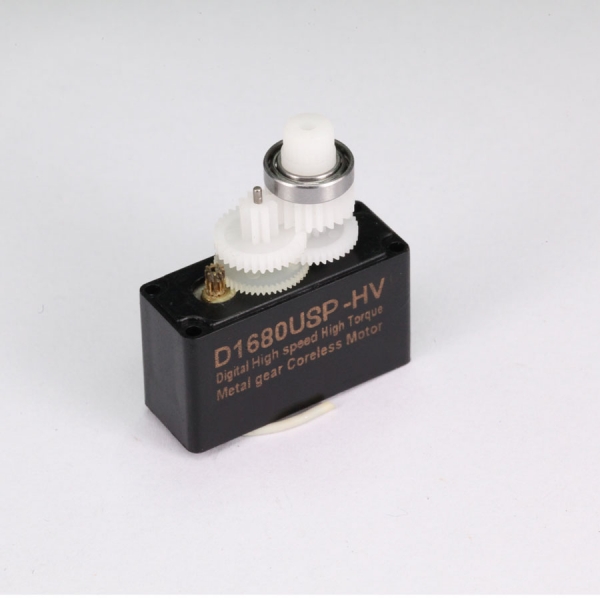

| Gear Material: | POM |
| Servo case: | ABS |
| Plug: | |
| Connector Wire Length: | 250.00 mm |
| Connector Wire SPEC: | OD0.8mm/16 x 0.08mm 3p x 250mm (JR) |
| Weight: | 13.80 g |
| Dimensions (L x W x H): | 29.50*11.60*26.00 mm |
